USB 3.0 Panel Pass Connector Female Socket Port Waterproof IP67

USB 3.0 Panel Pass Connector Female Socket Port Waterproof IP67

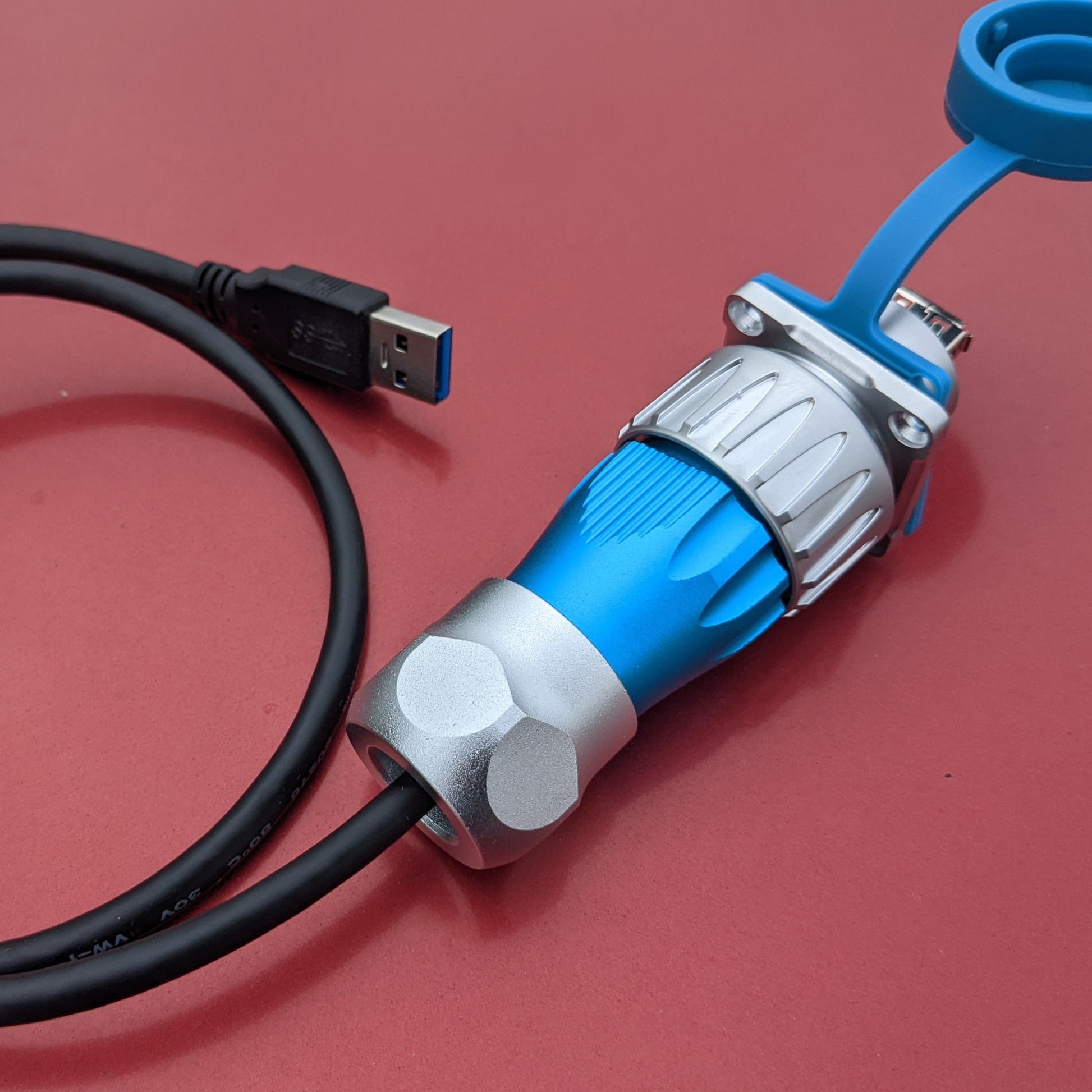

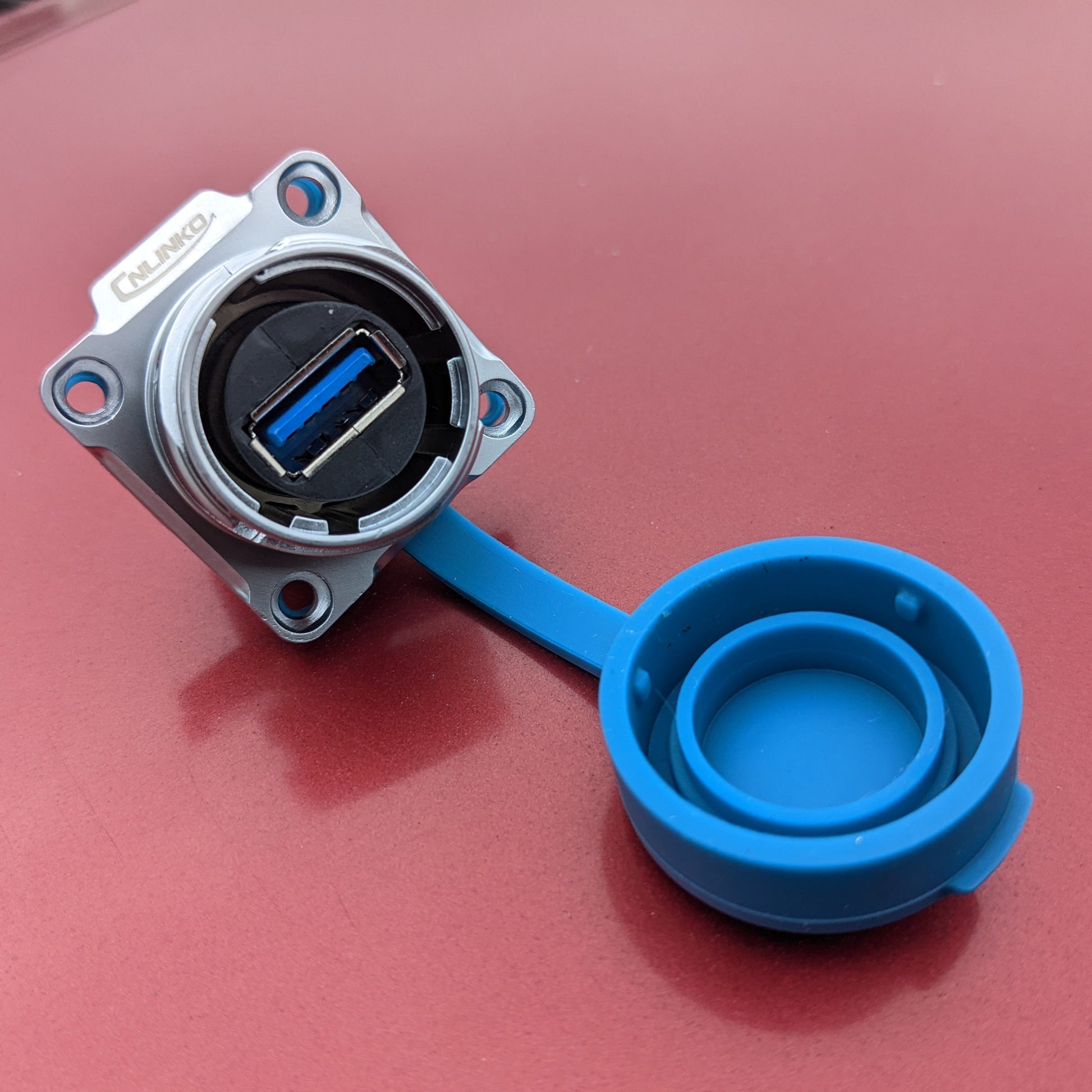

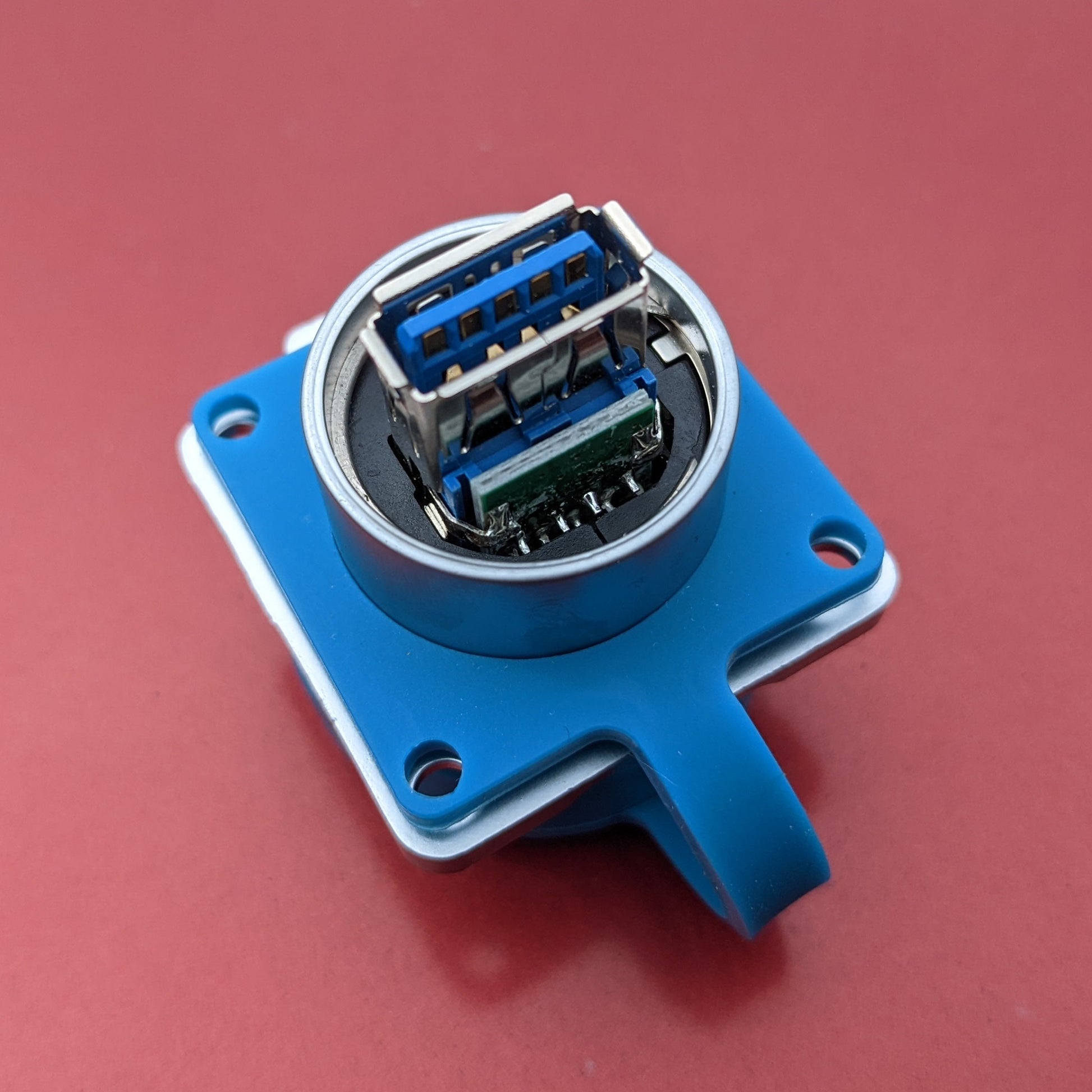

This is a female, panel mounted USB 3.0 plug in a durable aluminum housing. The male counterpart mounts securely with a twist-lock retaining ring.

Model Number:
LP-24-USB3.0-S01

Pairing Plug Model Number:
LP-24-USB3.0-P01

Features:

• USB 3.0 fully compatible with USB2.0, data transfer up to 600MB
• Zinc alloy material against high frequency noise and electromagnetic interference
• Silica gel material clamp protect wire
• Protection level: IP67
• Standard 20 Inch cable of plug
Specification:

Cable specification 0.15m㎡～0.2m㎡/26-24 AWG
Diameter range  Φ5.5mm～Φ7mm
Contact diameter × number 9PIN
Rated Current (A) 1.5A
Operating voltage (AC.V.rms) /
Contact resistance <30mΩ
Temperature rise /
Withstanding Voltage (AC.V) 1 minute 1000V
Insulation resistance ＞500MΩ
Protection level  IP67
Durability  ＞500 times
Working temperature -40℃～80℃
Connecting mode /
Assembly wire High-performance engineering plastics
Housing, the insulating parts   Zinc Alloy (pearl hard chrome)
Hardware  Copper alloy (gold-plated 6U)
Copper needles Silica gel
Waterproof circle UL94-V0
Flammability rating Plug/unplug
