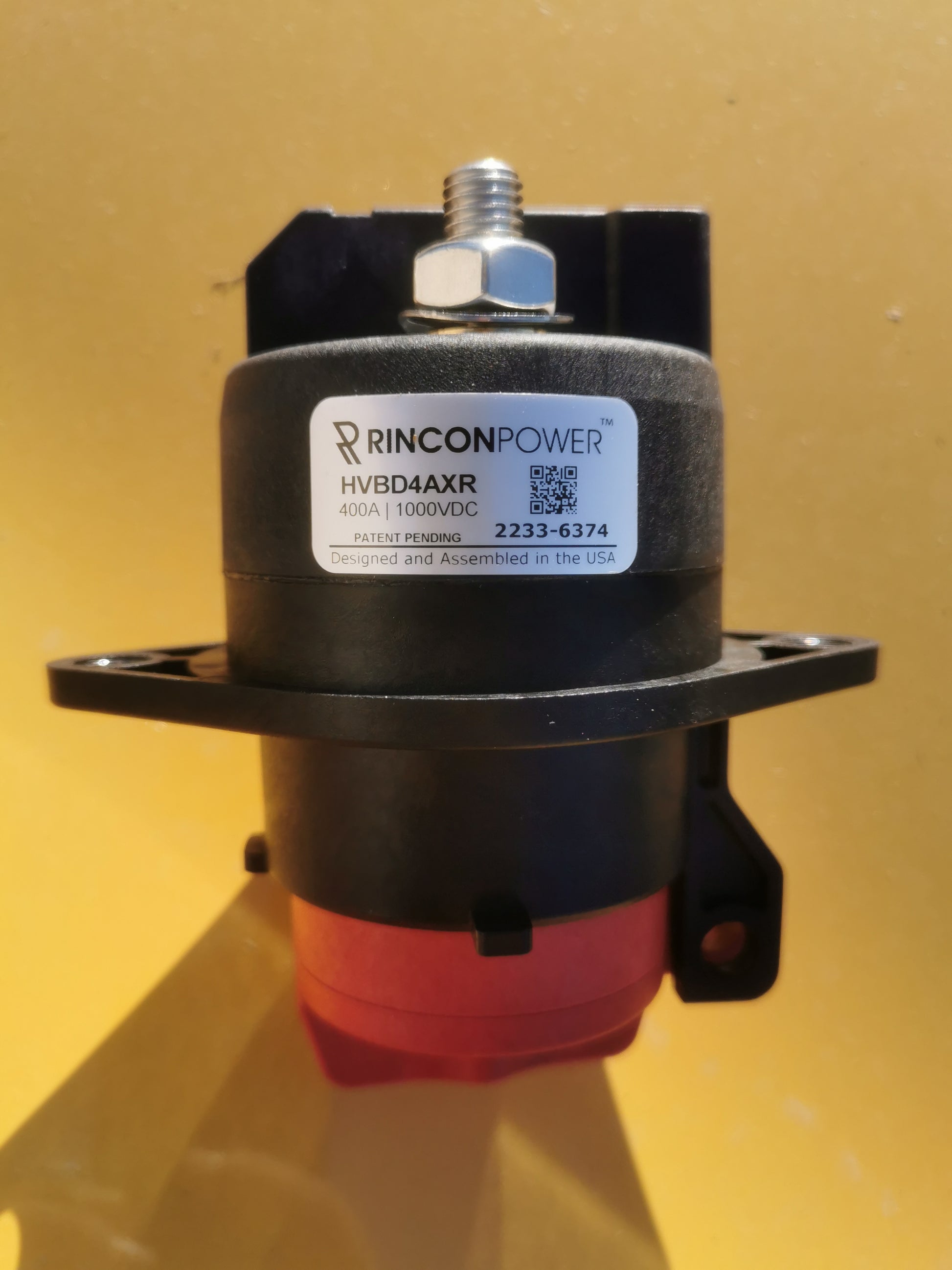

Rincon Power HVBD4AXR Maintenance Switch

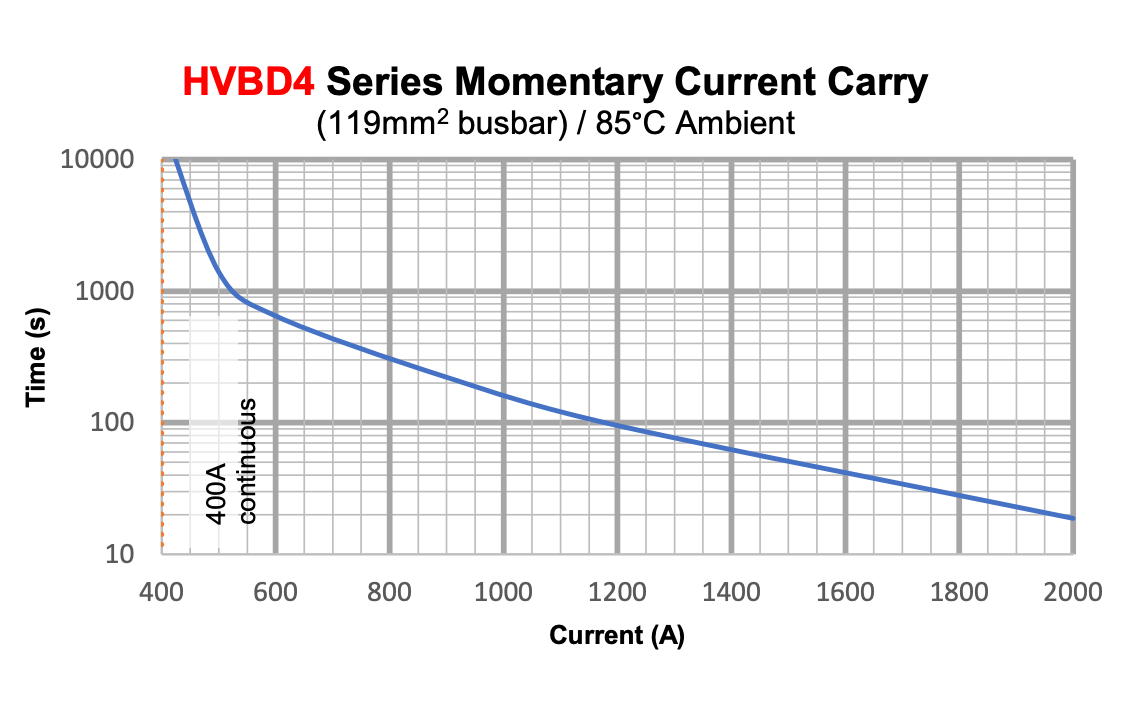

Rincon Power HVBD4AXR is a drop-in replacement for the Gigavac HBD41 battery disconnect switches which is no longer available. HVBD4AXR is rated at 400A continuous duty at 1000VDC even it can carry 5000 VDC for up to a minute.

It's designed specifically for EV applications. The switch is hermetically sealed to lockout moisture and dirt from the contacts. Features OSHA lockout/tagout.

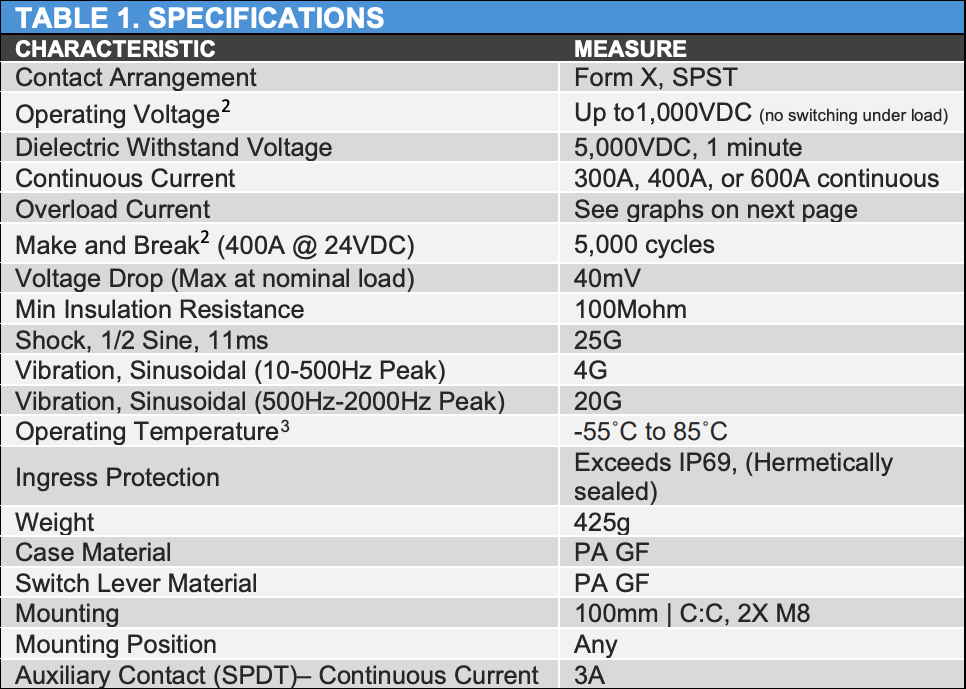

Data Sheet (Click here)
