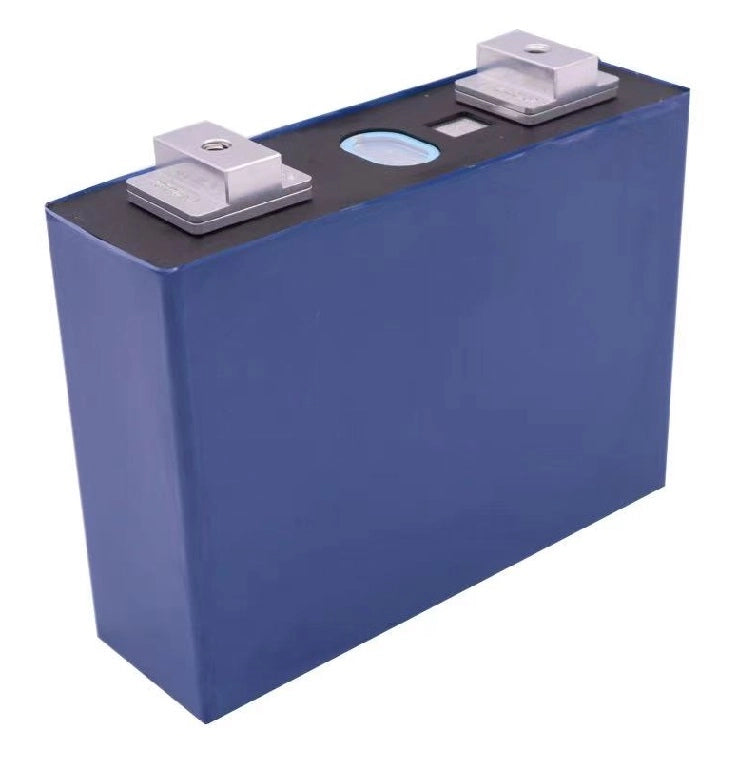

CALB 100AH L160F100B LiFeP04 Battery

Module

L160F100B

Nominal Voltage

3.2V

Nominal Capacity

100Ah

Dimension

160*49.9*129.5mm

Internal Resistance

0.2~0.5mΩ

Charge

Charge Voltage

3.65V

End Of Discharge Voltage

2.5V

Standard Charge Current

50A(0.5C)

Max. Charge Current

100A(1C)

Discharge

Standard Discharge Current

50A(0.5C)

Max. Continuous Discharge
Current

100A(1C)

Max. Pulse Discharge
Current(30S)

300A(3C)

Operating
Temperature
Range

Charging Temperature

-5~60°C

Discharging Temperature

-20~60°C

Weight

2.0±0.1kg

Shell Material

Aluminum
