EVTV UQM Powerphase 100 VW Adapter

EVTV UQM VW Adapter

An EVTV exclusive. This adapter allows you to connect the UQM Powerphase 100 Motor to any VW swing axle or IRS transmission from the 67-79 VW Bug.

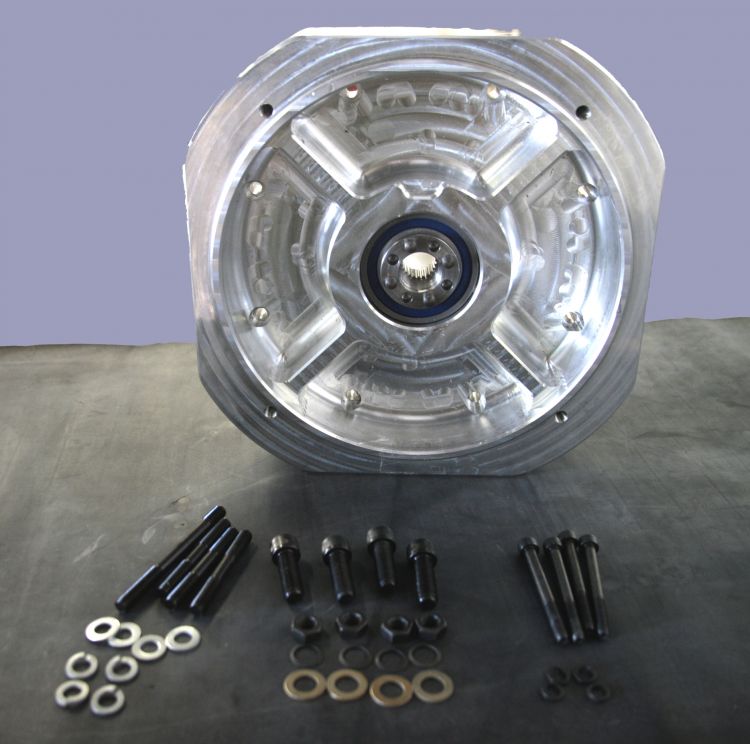

The adapter features an extremely high quality billet aluminum plate to adapt the motor to the transmission. But it also features a thrust bearing and integral coupler that accepts the Siemens shaft spline on one side and allows the VW flywheel and gland nut on the other.

This makes using this motor with any VW transaxle extremely easy. Just bolt the adapter onto the motor. Add your flywheel, gland nut, clutch and pressure plate, and bolt the assembly to the transmission. It can not be done more simply. The coupler is integral to the adapter.

We used it on the Green 1974 VW Thing project.
