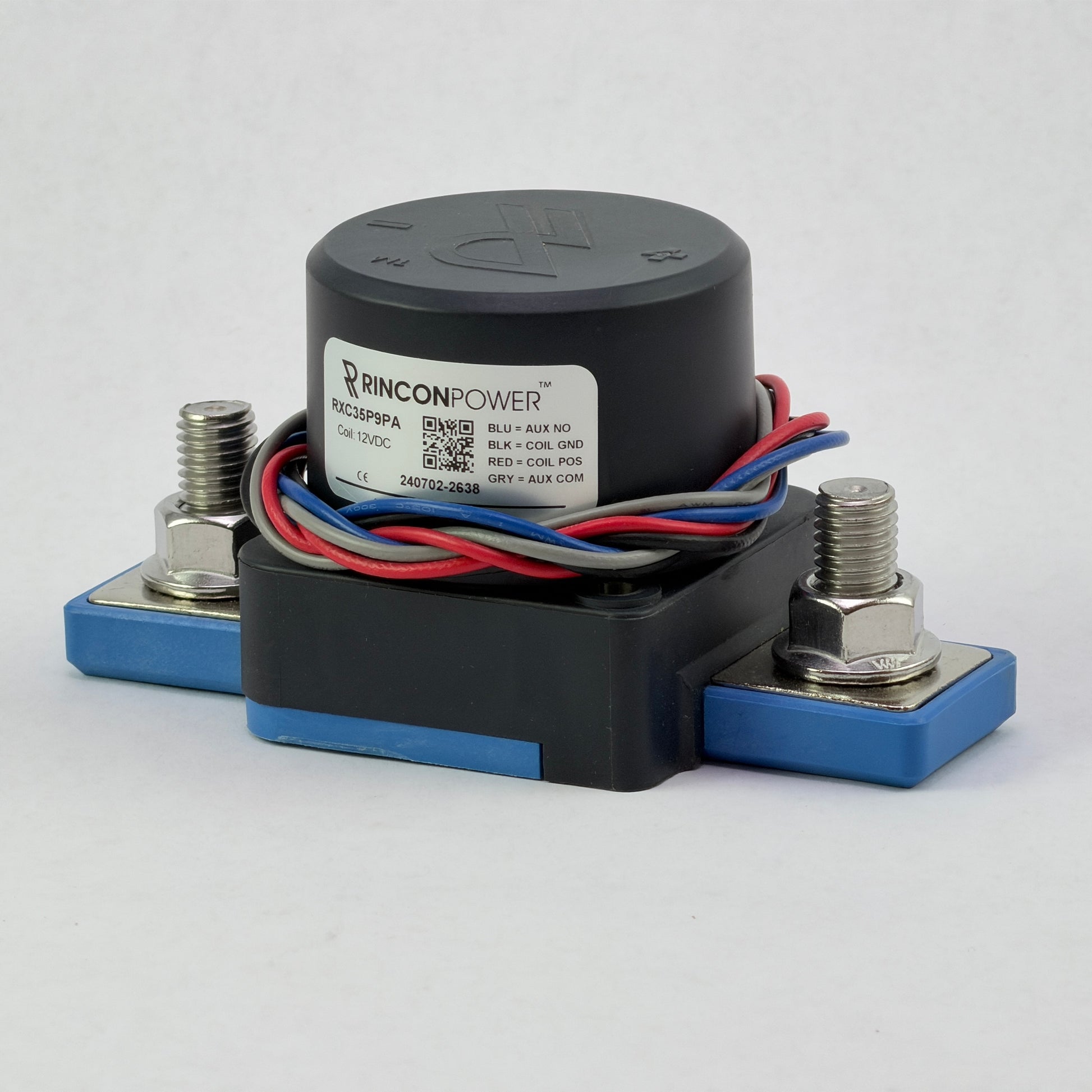

Rincon Power RXC35-P9PA Contactor

The Rincon Power RXC35-P9PA contactor is a 350A single-pole single-throw (SPST) normally open (NO) high voltage high current relay capable of breaking current flows up to 1000V.

Mechanically rated for over 300,000 cycles, this hermetically sealed contactor features built-in coil suppression and exceed IP69 at environmental rating.

The coil operates on 7.5 - 16 vdc with a 4.3 amp close but a small 0.24 amp holding current. UL 1007, UL 1569.
