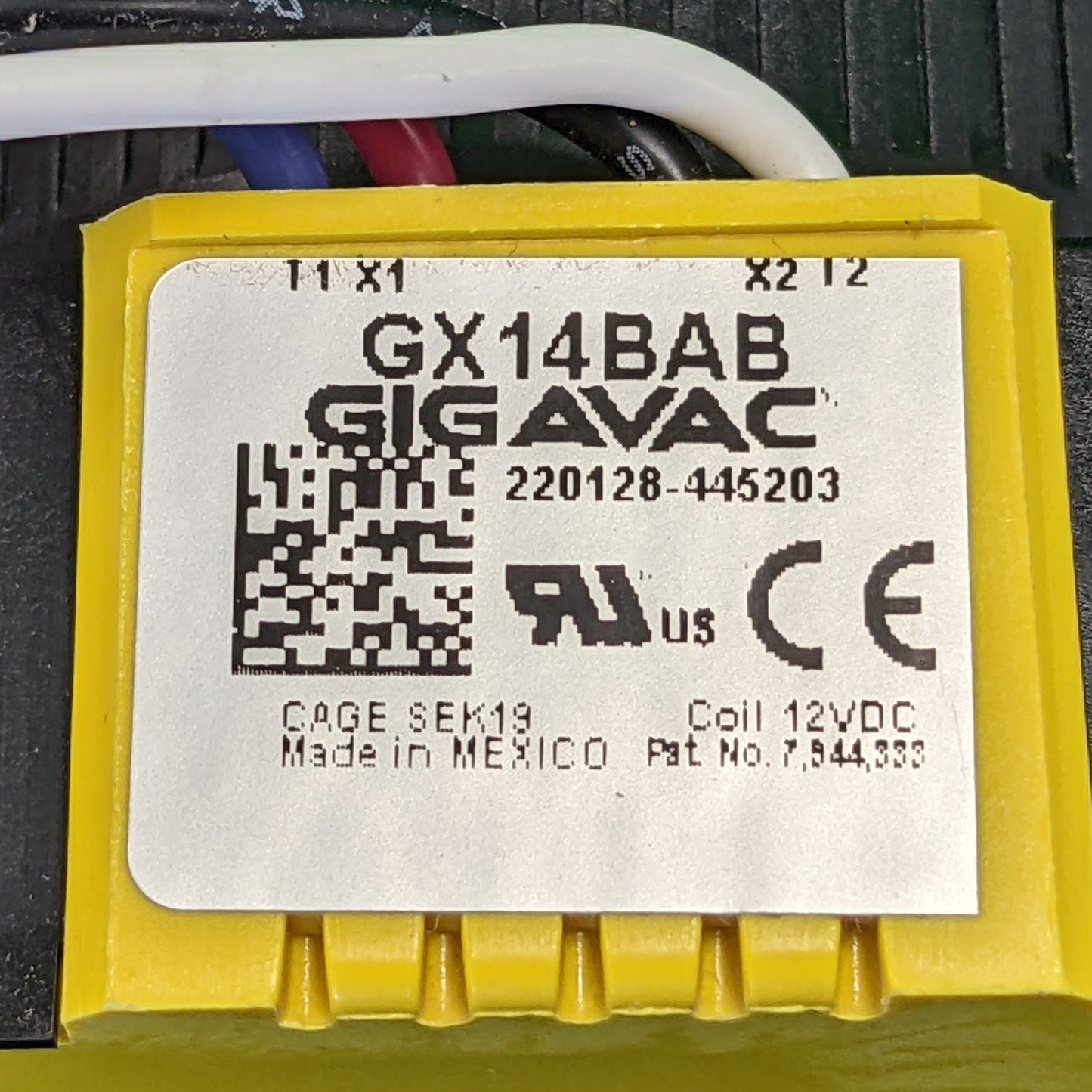

Gigavac GX14BAB Latching Contactor

The GIGAVAC GX14BAB contactor is a 350A single-pole single-throw (SPST) normally open (NO) high voltage high current relay capable of breaking current flows up to 800V

Mechanically rated for over 1,000,000 cycles, this hermetically sealed contactor features built-in coil suppression and IP67 environmental rating.

The coil operates on 8-16vdc with a 4.3 amp close but a small 240 ma holding current. UL 1604 listed for Classes I, II, and III.

PDF Datasheet.
