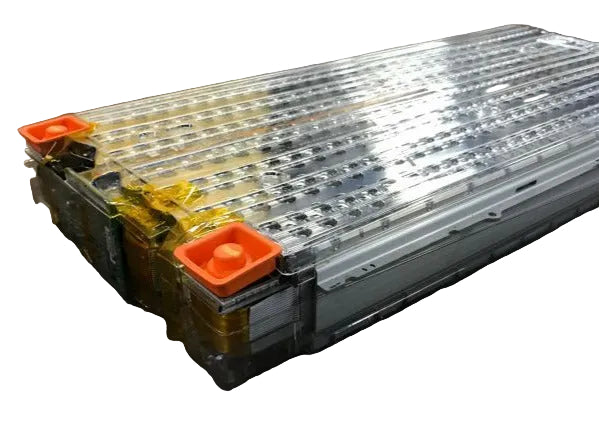

Tesla Model S 6.3 kWh Battery Module

In recent years, the Tesla Model S battery module has emerged as a staple in home solar energy applications. It is available in a handy size at a little over two feet long and 56 lbs with a nominal voltage of 22.8v and an impressive capacity of approximately 6 kiloWatt-hours. And now with the available EVTV module controller circuitry, you can safely use these batteries taking advantage of the advanced Tesla BMS circuit board provided on the module itself to monitor voltages and temperatures and perform balancing of the cells while in operation.

This listing is for the newer 6.3kWh modules found in newer 100kWh vehicles. These are excellent for getting a little extra capacity, while occupying the same physical space as the standard 5.2kWh modules. Well suited in applications where space is at a premium.

These modules are not normally stocked, but are available upon request. To order, email us at sales@evtv.me, or call the shop at 573-388-4580. Lead times are of ~1.5 weeks are typical.

Dimensions:

Length 27 in / 685mm

Total width with mounting fins 11 13/16 in / 300mm

Height 3 in / 75mm

Terminals  9 in / 230mm

Tubing 5/16 in / 8mm

Weight: 56.5lbs / 25.6kg
