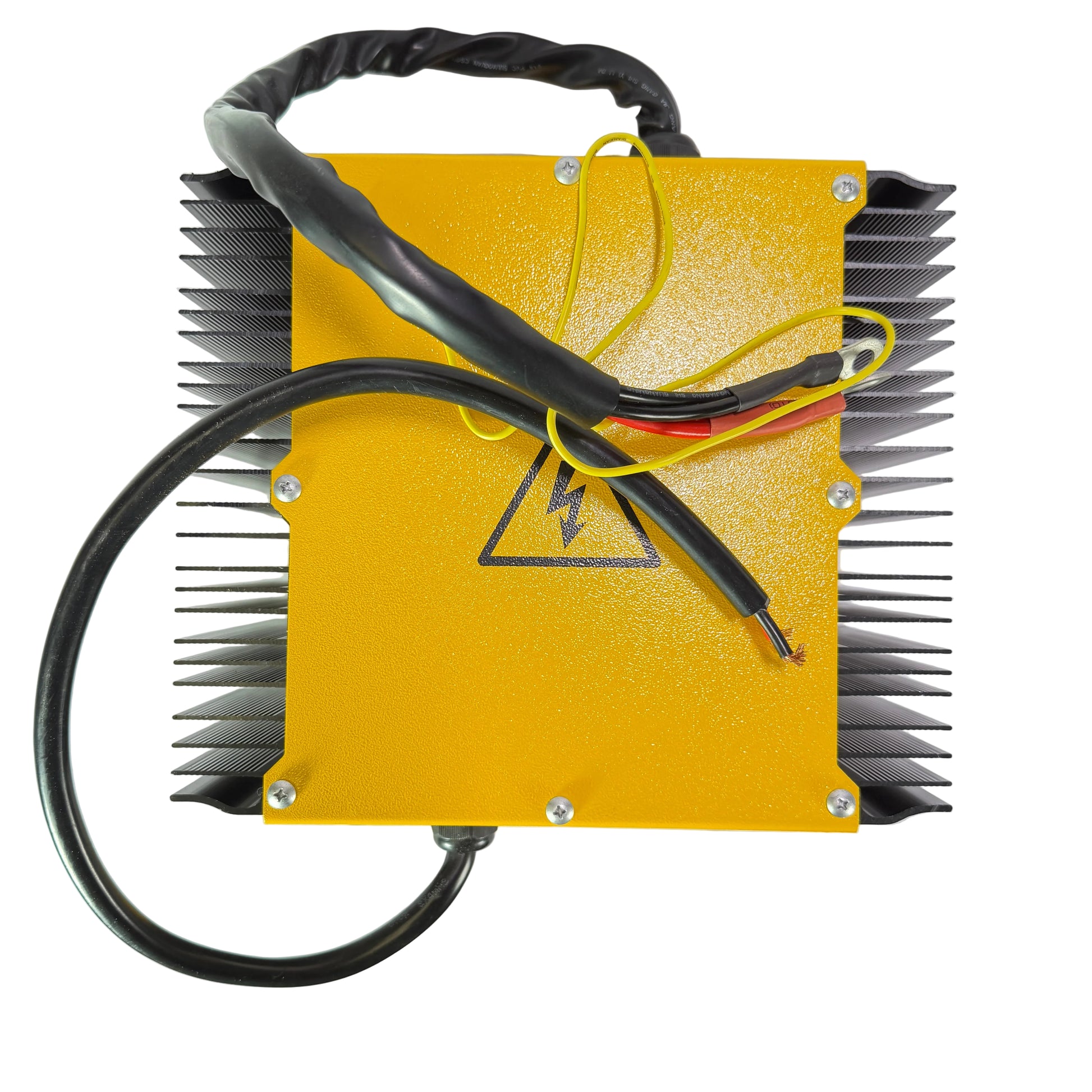

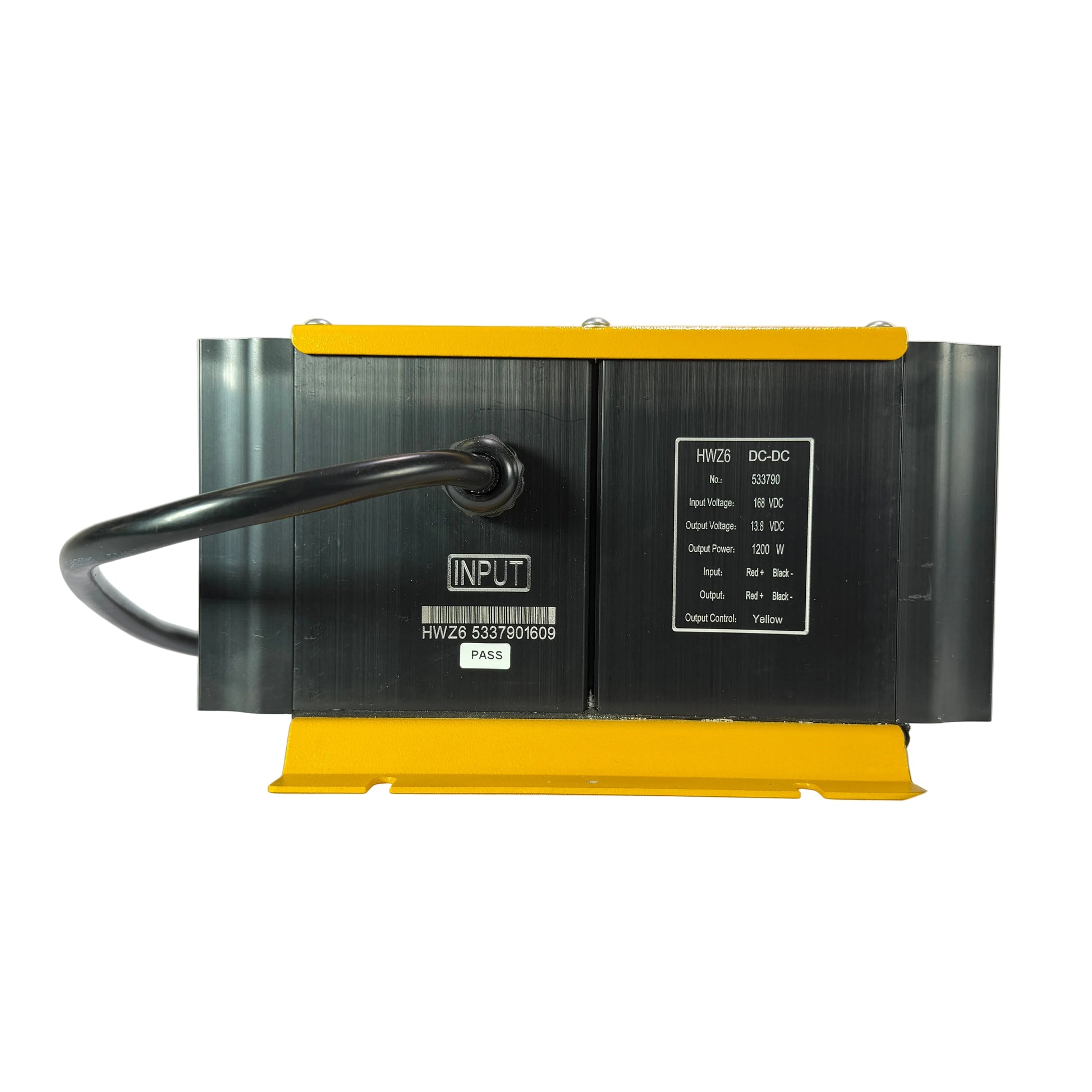

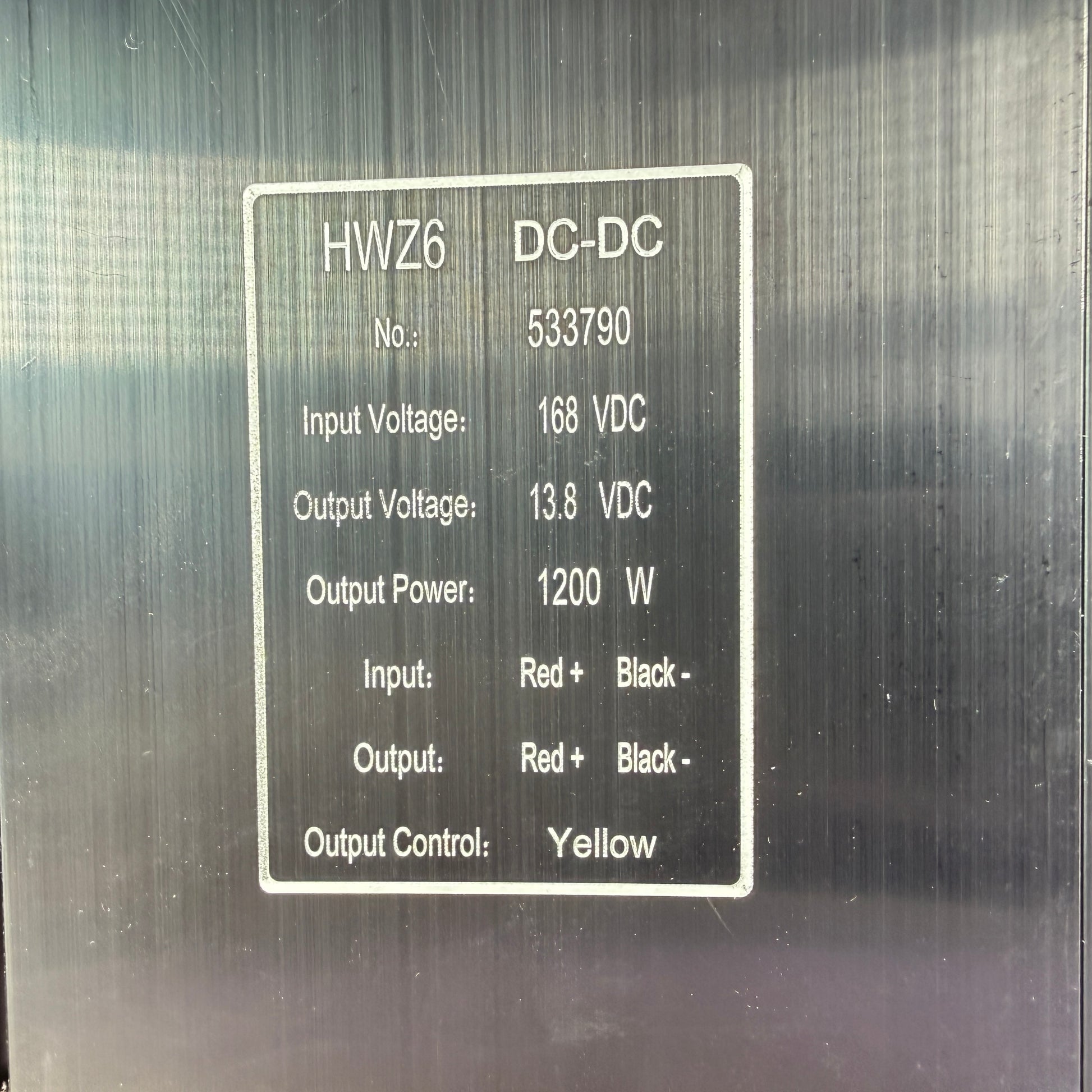

HWZ6 168vdc (144 - 204) 1200 watt DC DC Converter

This device takes an input voltage of nominally 168vdc (144vdc to 204vdc) and converts it to a 13.8vdc output at up to 100 amps.

Isolated

IP 66 weather resistance

1200 watt

Voltage regulation: <1%

Ripple: <2%

Operating temperature: -40C - +55C

Dimensions: 277 x 256 x 142 mm

Weight: 7kg

Efficiency: >90% at full load

Reverse polarity protection

Short circuit protection

**New**As Is**No Returns**No Exchanges**No Warranty**
