Netgain Warp 11 Motor HV
Netgain Warp 11 Motor HV

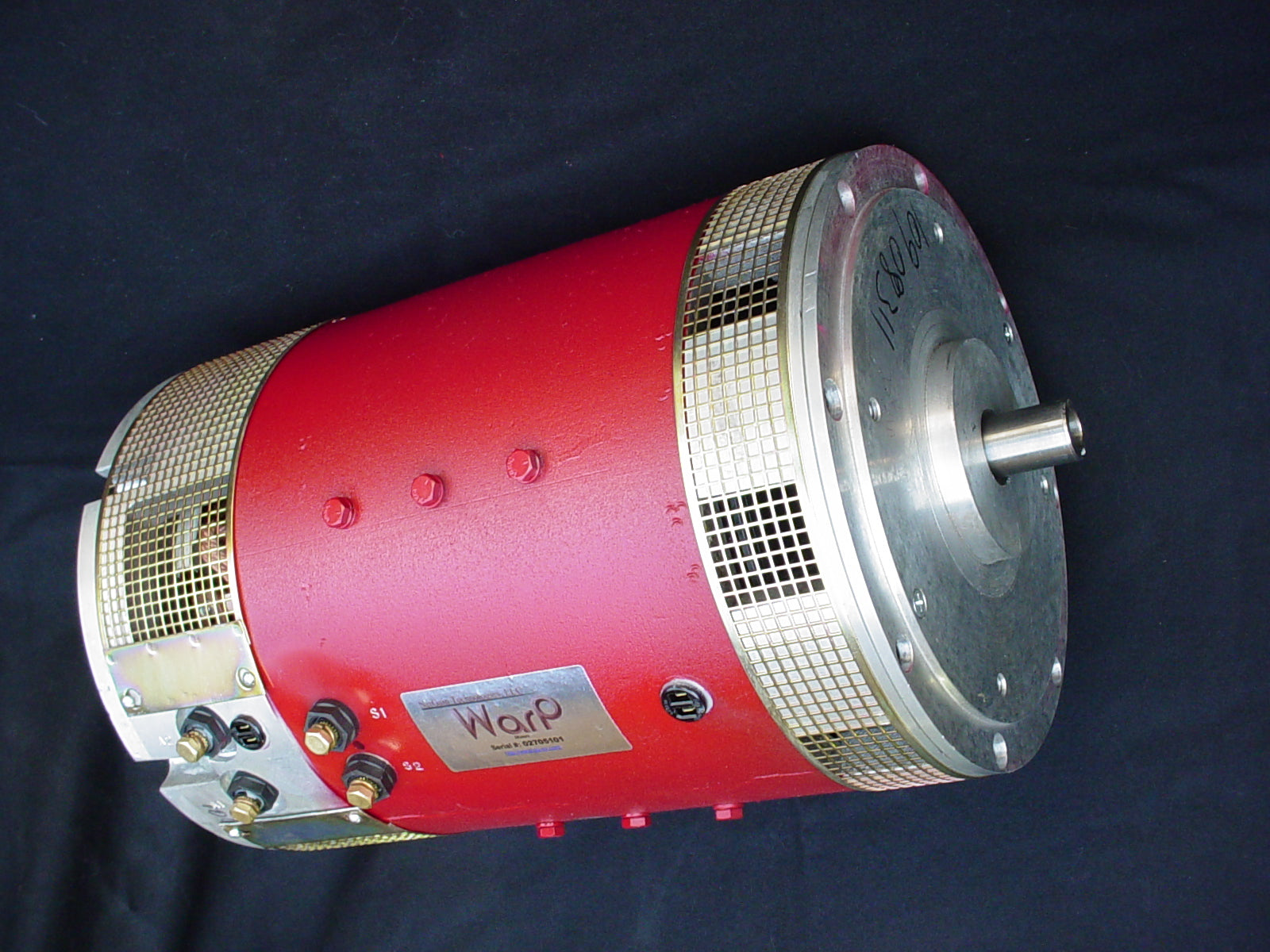

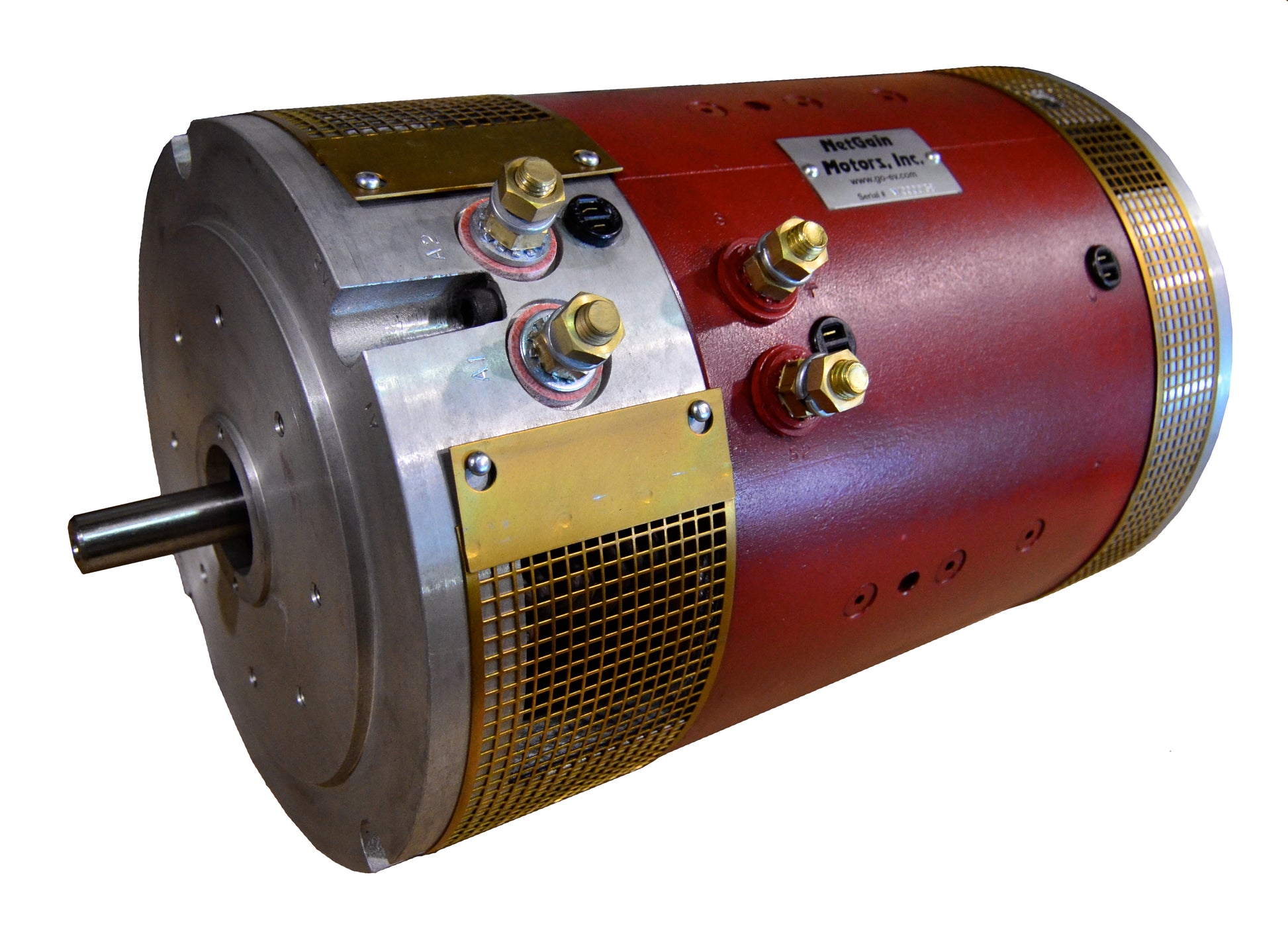

Netgain Warp 11 Series DC Motor. This is the motor we used in the Cadillac Escalade, though we used two of them to move the 8000 lb beast.
By virtue of a larger armature diameter, this motor produces more torque than the Netgain Warp 9. As much as 290 ft-lbs of torque at 1000 amps.
11.45" diameter, series wound DC motor 1.125 keyed drive shaft .875" diameter tail shaft Normally open (NO) temperature snap switch will close at 150C. 1/2"- 20 hole in the DE end-bell for the addition of a RPM sensor. temperature thermistor (normally mounted 180 degrees from the temperature snap switch). part number KTY84/130 T/R.
By virtue of a larger armature diameter, this motor produces more torque than the Netgain Warp 9. As much as 290 ft-lbs of torque at 1000 amps.
11.45" diameter, series wound DC motor 1.125 keyed drive shaft .875" diameter tail shaft Normally open (NO) temperature snap switch will close at 150C. 1/2"- 20 hole in the DE end-bell for the addition of a RPM sensor. temperature thermistor (normally mounted 180 degrees from the temperature snap switch). part number KTY84/130 T/R.
Regular price
$8,100.00 USD
Regular price
Sale price
$8,100.00 USD
