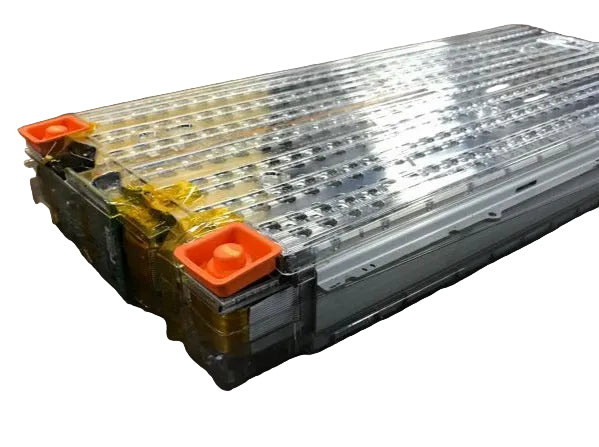

Tesla Model S 5.2 kWh Battery Module

In recent years, the Tesla Model S battery module has emerged as a staple in home solar energy applications. It is available in a handy size at a little over two feet long and 56 lbs with a nominal voltage of 21.6v and an impressive capacity of approximately 5 kiloWatt-hours. And now with the available EVTV module controller circuitry, you can safely use these batteries taking advantage of the advanced Tesla BMS circuit board provided on the module itself to monitor voltages and temperatures and perform balancing of the cells while in operation. Each module consists of six "cells" of nominal 3.6vdc consisting of 74 Panasonic NCA 18650 cylindrical battery cells of approximately 3.2Ah capacity in parallel. This 6S74P configuration then features a nominal voltage of 21.6v at 233 Ampere-hours for 5032 Watt-hour capacity.

Dimensions:

Length 27 in / 685mm

Total width with mounting fins 11 13/16 in / 300mm

Height 3 in / 75mm

Terminals  9 in / 230mm

Tubing 5/16 in / 8mm

Weight: 56.5lbs / 25.6kg
