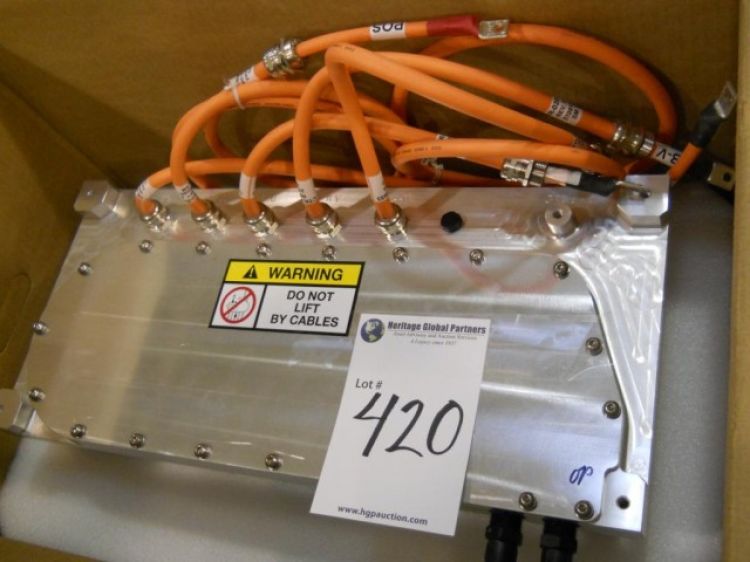

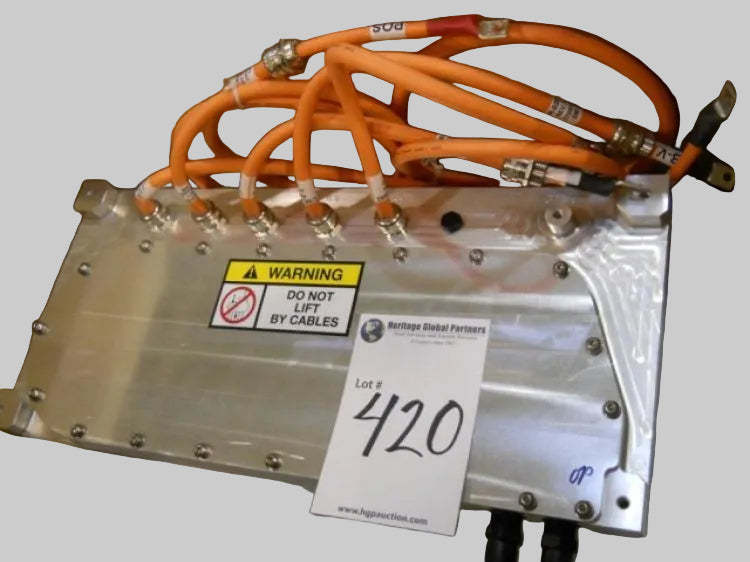

DMOC 645 Inverter - Air Cooled

DMOC 645 Inverter - Air Cooled

This is the Azure Dynamics 3-phase AC Motor Inverter.   This device is controlled by CANBUS messages to drive the Siemens 5135-4WS14-Z AC Induction Motor.
Azure Dynamics was liquidated in November 2012 and there is no product support, warrantees, or repair services for this inverter.  It requires a Vehicle Control Unit (VCU) to translate driver inputs into appropriate Controller Area Network (CAN) messages to control the inverter.

Air Cooled version

Minimum Voltage: 120vdc
Maximum Voltage: 400vdc
Maximum Operational Voltage on Charge: 450v
Peak Efficiency: 97%
Peak Motor Current: 414 Amps RMS
Peak Power: 118 kW @ 336vdc
Continuous Power: 53kW @336 vdc
Operating temperature: -40C to +55C
Maximum Motor Current: 414 ARMS
Minimum Aux Voltage: 11vdc
Maximum Aux Voltage 15vdc
Length: 585 mm / 23 inches
Width: 260 mm / 10.25 inches
Height: 310 mm / 12.25 inches
Weight: 27.5 kg / 60.62 pounds
Peak efficiency: 97%
Environmental: IP54

35 pin Ampseal Connector: AMPSeal 776164-1  connector and 770854-3 pins
Regular price $995.00 USD
