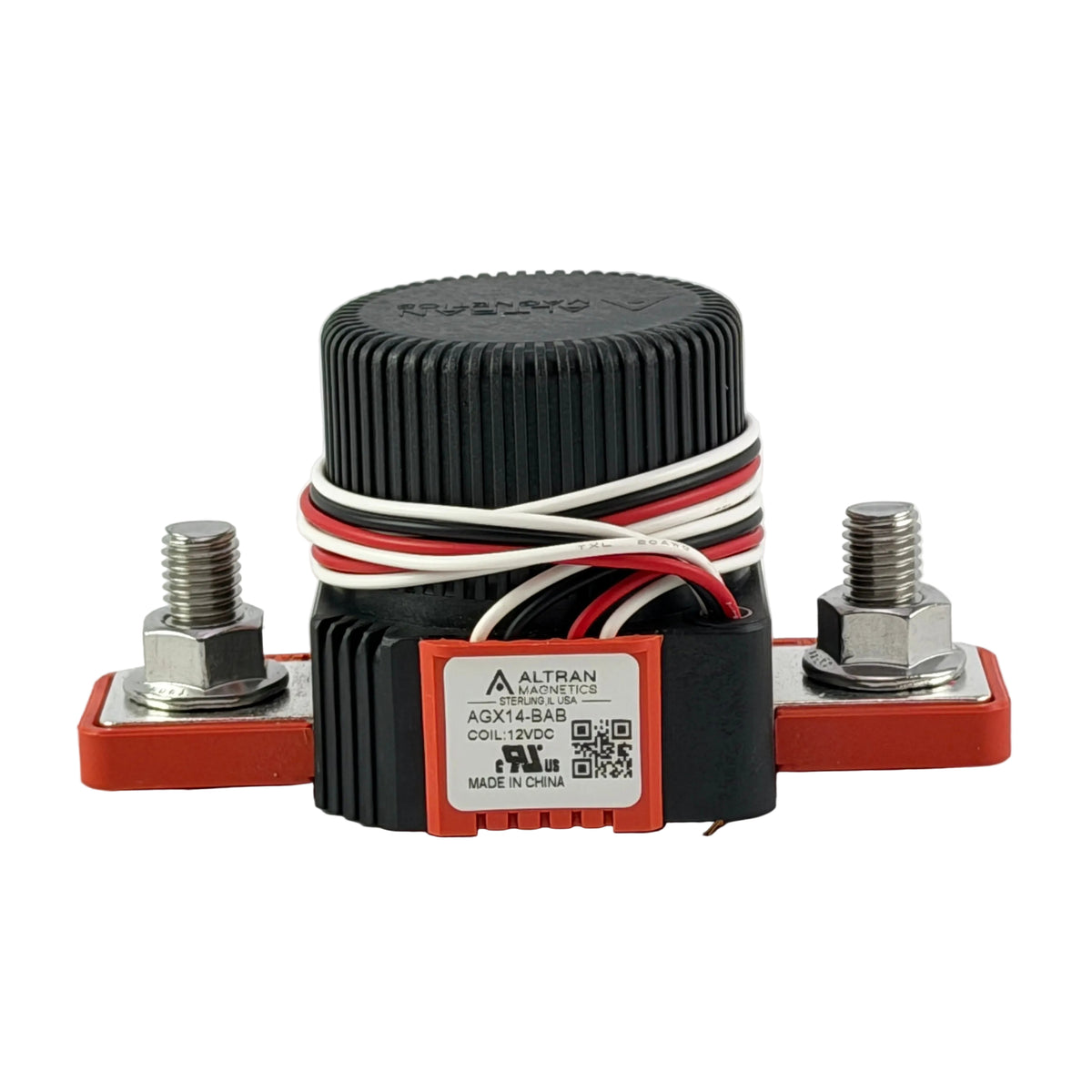

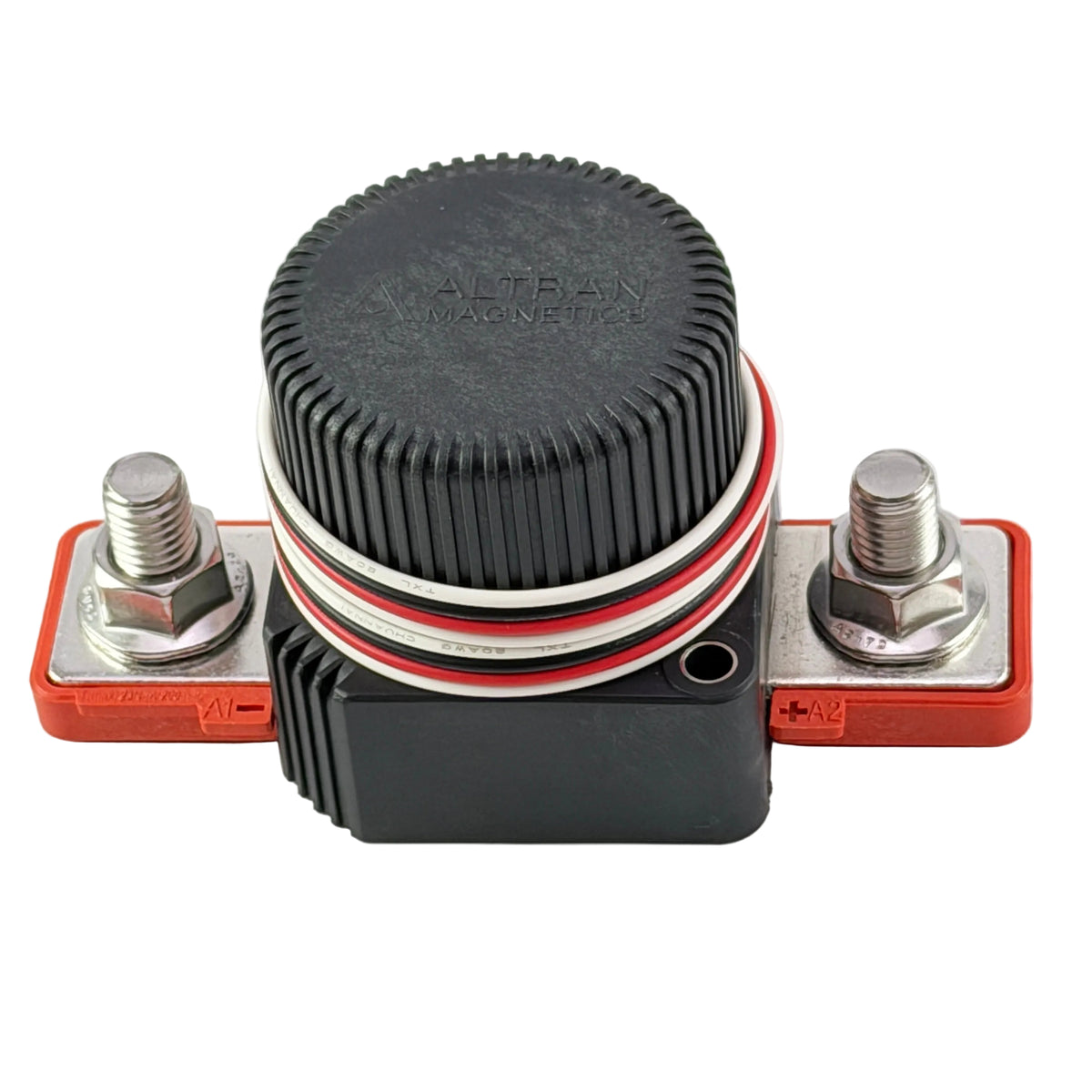

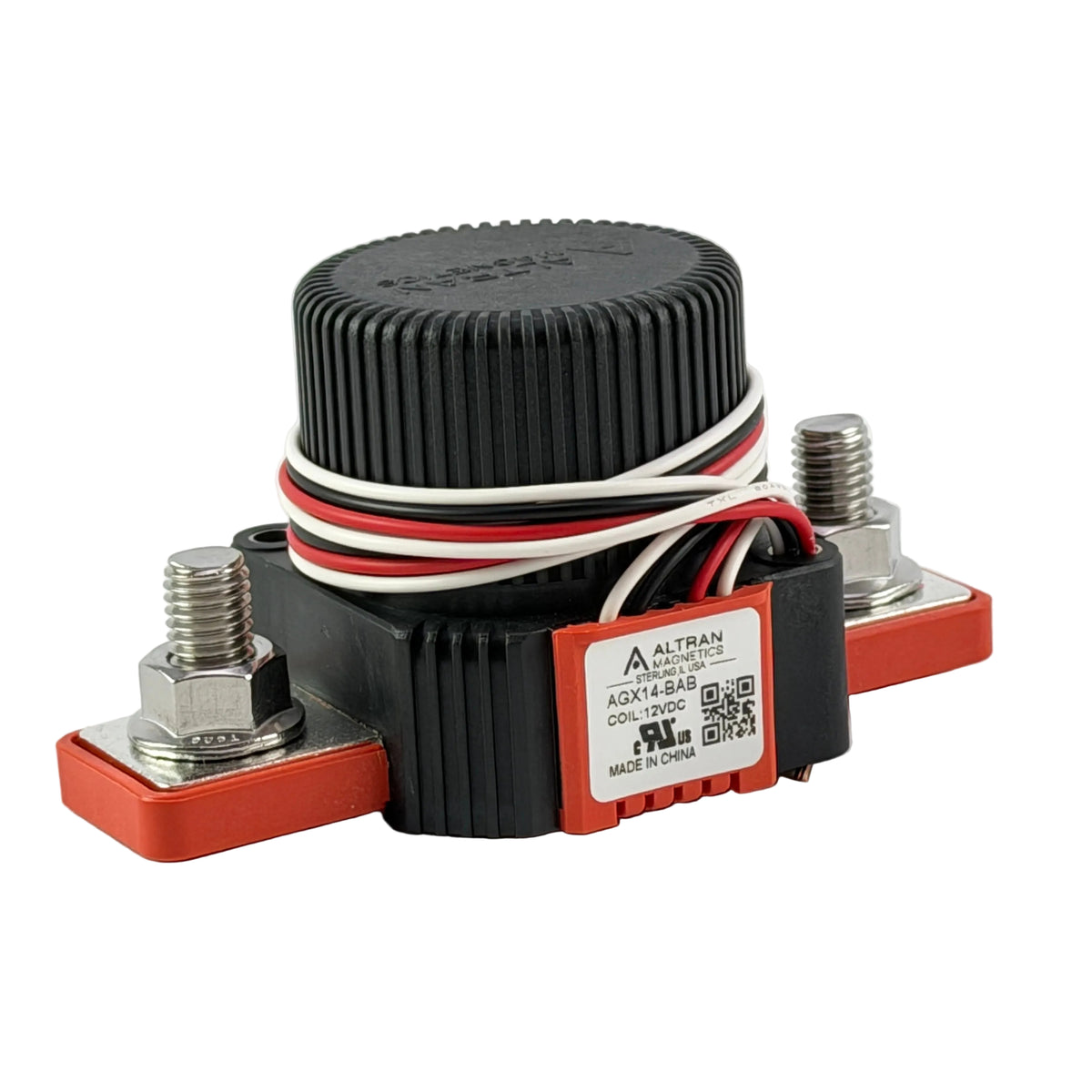

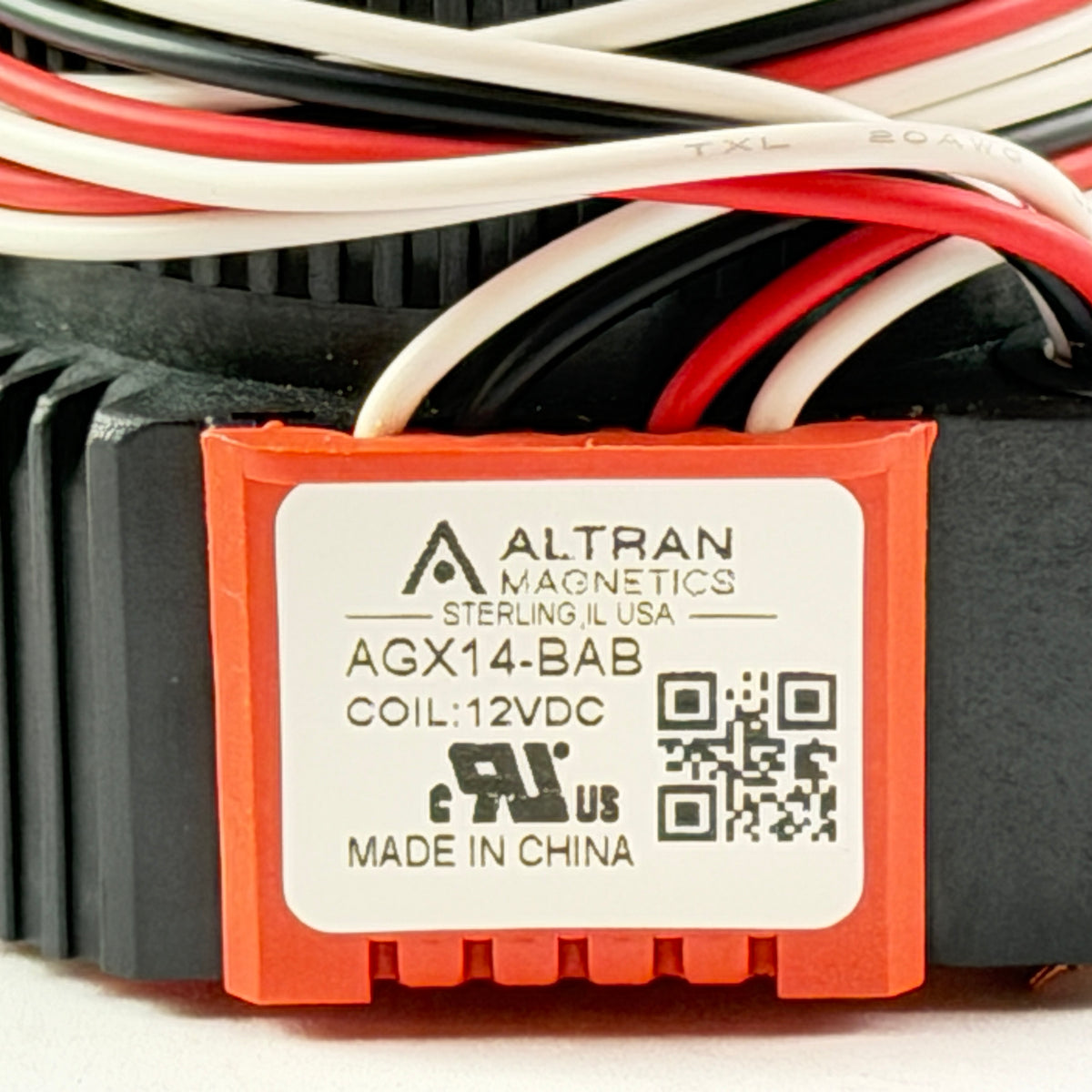

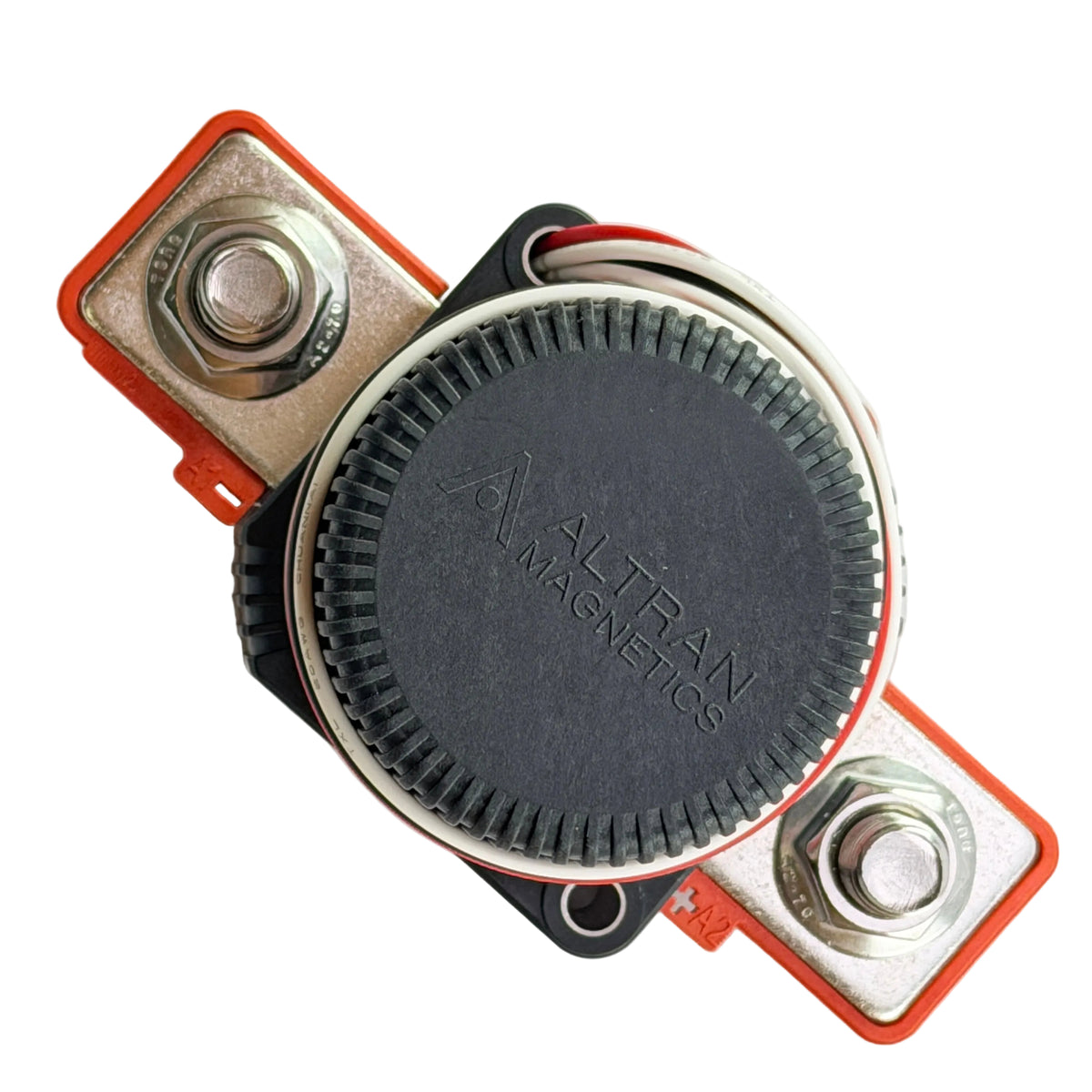

Altran Magnetics AGX14 High Voltage DC Contactor 350A+/800VDC

Altran Magnetics AGX14 High Voltage DC Contactor 350A+/800VDC

Termination Style: Stud, Wire Leads
Manufacturer: Altran Magnetics, LLC
Operating Temperature: -55°C ~ 85°C
Series: AGX14
Must Operate Voltage: 40 VDC
Must Release Voltage: 4 VDC
Operate Time: 20 ms
Mounting Type: Chassis Mount
Release Time: 12 ms
Coil Voltage: 12VDC
Coil Current: 42 mA
Contact Form: SPST-NO (DM) (1 Form X)
Coil Power: 2W
Contact Rating (Current): 350 A
Coil Resistance: 1.14kOhms
Switching Voltage: 800VDC - Max
